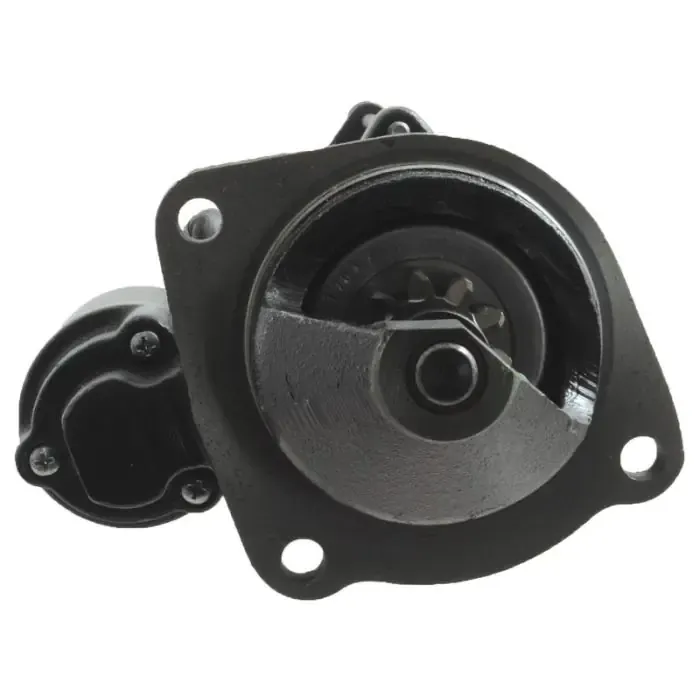

Direct Verzonden Startmotor – 12V, 3.2Kilowatt, Overbrenging gereduceerd (Mahle)

Startmotor- 12V, 3.2Kilowatt, Overbrenging gereduceerd (Mahle)

B (mm) 89 C (mm) 32.5 A (mm) 127 D (mm) 39.6 A (mm) 127 Aansluiting 3 Gaten Flens – RH opening Aantal Flens Gaten 3 Aantal Tanden 10 Afstand tussen tanden mm 15.4 A Hoek ° -42 B (mm) 89 Belopening Rechts Buitendiameter van terminal mm 7.8 C (mm) 32.5 D (mm) 39.6 E (mm) 10.9 Hoogte (mm) 152.4 Inbouwmaat 10.9 Kilowatt 3.2 Lengte (mm) 381 Lengte van voorkant naar achterkant mm 220 Merk Mahle Overbrenging gereduceerd Ja Voltage 12V

Passend voor merk/model

JCB	2, 2CX, 3, 3CX, 532-120
Manitou	MLT629-120LS
Massey Ferguson	1004, 1004T, 155, 158, 165, 168, 175, 178, 185, 188, 235 BRAZILIAN, 240, 250 BRAZILIAN, 265, 275, 290, 292 BRAZILIAN, 295 BRAZILIAN, 296 BRAZILIAN, 297 BRAZILIAN, 298, 299 BRAZILIAN, 3050, 3060, 3065, 307, 3070, 3075, 3330, 3340, 3350, 3355, 3425, 3435, 3445, 3455, 362, 365, 372, 375, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 390T, 396, 398, 399, 415 BRAZILIAN, 4215, 4220, 4225, 4235, 4245, 425 BRAZILIAN, 4255, 4260, 4265, 435 BRAZILIAN, 440 BRAZILIAN, 445 BRAZILIAN, 460 BRAZILIAN, 465 BRAZILIAN, 475 BRAZILIAN, 481 BRAZILIAN, 492 BRAZILIAN, 50, 500B, 506, 507, 50B, 50D, 50E, 50EX, 50F, 50H, 50HX, 520, 525, 5340 BRAZILIAN, 5355 BRAZILIAN, 5360 BRAZILIAN, 575, 590, 595, 60H, 60HX, 6110, 6120, 6130, 6140, 6150, 675, 690, 698, 698T, 699
McCormick	CX100, CX105, CX70, CX80, CX85, CX90, CX95, MC100, MC105, MC80, MC90
Perkins	1103B-33 (DF), 1103B-33T (DG), 1103C-33 (DC), A4.212 (LA), A4.236 (LD), A4.248 (LF), A4.318 (NC), A6.354.4 (TW)
Renault	70-32, 70-34, 75-32, 75-34, 80-32, 80-34, 85-32, CERES 75

Fabrikant OEM nummers

Iskra	IS1201
JCB	714/40159R, 714/40159, 714/40231, 714/40531, 714/40536
Massey Ferguson	4226785M91, 4225326M91, 4227441M91, 4226784M91, 4227054M91, 1482841M92
Perkins	2873A029, T410865, 2873K405, 2873K624, 2873K626
